Solinst 9100 STS Edge Telemetry Systems Overview

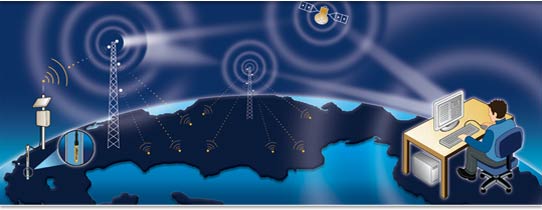

Solinst STS Edge Telemetry Systems are designed for use with Solinst high quality dataloggers. Using a GSM cellular modem, the STS Edge sends water level, temperature, conductivity and rainfall data from the field to a Home Station PC. STS Edge Remote Stations can be powered by a sealed leadacid 12V battery, and optionally, solar trickle charging or direct AC power. Up to four Solinst dataloggers can be connected to one STS Edge. Two-way IP communication from your desktop allows added features such as alarm notification, remote diagnostic reporting, and remote updates, which makes it easy to maintain your system, while simplifying data collection. STS Edge Telemetry Systems are ideal for large networks. Hundreds of remote stations can report to a single Home Station computer.
STS Edge Applications- Remote or difficult-to-access locations
- Hazardous or critically important sites
- Long-term groundwater monitoring applications
- Drought and water taking management
- Watershed management
- Landfill and mine water supervision
- Flood and stormwater management
Operation of Solinst 9100 STS Edge Telemetry Systems
Initial setup for each STS Edge is done using Solinst Telemetry PC Software at the Home Station. A sample rate is set at which the STS Edge records a real-time reading from each attached datalogger. A report rate sets the frequency that the data is sent from the STS Edge to the Home Station. Dataloggers can be programmed to record independently of the STS Edge and store the data in their own internal memory, providing reliable backup, if circumstances require it. The STS Field Utility Software is used to initialize the STS Edge via a USB connection. The Field Utility is also used to perform diagnostic checks on a connected STS Edge, as well as control the modem and its settings. It is convenient to install on a laptop for use in the field. Reported data is placed in a dynamically updated database on the Home Station computer. You can display formatted data on web pages by accessing the database using your own macros or scripts. Solinst Telemetry Software can be used for a quick check of the latest readings. You can also set up and view barometrically compensated water level data. Data can be exported for use in your preferred database or modelling package. To ensure no data loss, the STS Edge stores data in its memory until it has been successfully uploaded by the Home Station computer. Changes to the reporting schedule or STS Edge firmware updates can be done remotely using Solinst Telemetry Software, which will update the STS Edge and dataloggers at the next scheduled report.
Solinst 9100 STS Edge Telemetry System Features
- Intuitive software for easy programming and setup
- IP communication for reliable data transfer
- Database to import to your own website or list
- Allows barometric compensation of remote water level data
- Remote schedule and firmware updates from the Home Station
- Battery level and status updates with each report
- GPS module in remote STS Edge allows location mapping in Solinst Telemetry Software
- High or low level alarm notifications
Solinst 9100 STS Edge Telemetry Alarms and Diagnostics
An e-mail alarm notification will be sent automatically to the Home Station if a low battery condition is detected. The Home Station then sends out email alerts, as set up in the software. High, low and percent change alarms can also be set for each datalogger (e.g. water level, temperature, rainfall, or conductivity). Along with water level, temperature, barometric, conductivity, and rainfall data, the Home Station is updated with battery level and status of the STS Edge and dataloggers with each data report.
"
